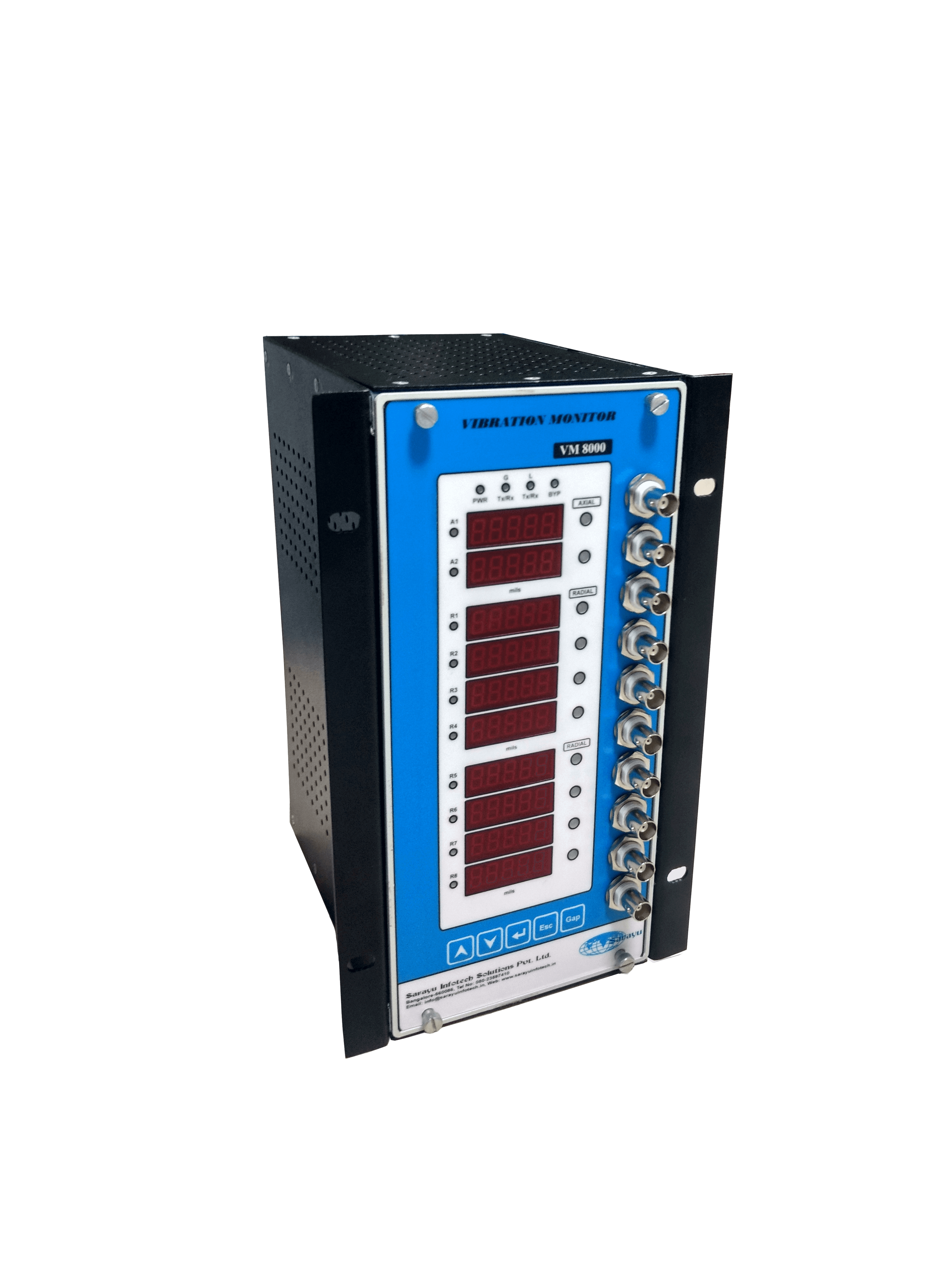

Vibration Monitoring System VM8000

VM-8000 is a continuous online monitoring system suitable for condition monitoring and machinery protection applications. The system measures 10-channel Non-Contact /Casing vibration. The system has dedicated 5 digit 7 segment displays for displaying vibration values. Also measured parameters will be communicated to remote terminal via MODBUS RTU on RS485. The system provides industry standard 4~20mA DC signal output for interfacing with Distributed Control System (DCS). The system has 8 programmable relays for alarm and trip. Read relay contacts provide for Alarm and trip. Each channel has tricolor LED indication for indicating OK, DANGER and ALERT status.

Features:

• Industry Standard 6U/24T Rack Size.
• Digital Display Options.
• Ten Channel Measurements.
• Four Relay Output (Alarm Contact Output).
• Built in power supplies necessary for sensors operation.
• LEDs per channel for indicating OK/ALERT/DANGER status.
• RS485 serial port with MODBUS RTU protocol..
• 32 units can be connected in RS485 multi drop network.
• All Settings stored in Non-Volatile memory to prevent any data loss.
• Industry standard DC Power Supply +24 VDC.
• Set Points for Alert Alarm Limits.
• Set Points for Danger Alarm Limits.
• Set Points for Alarm Time Delay.
• Latching for Alert Alarm.
• Latching for Danger Alarm.
• Digital Communication.
• Multi-function Key switch.
• Highly reliable. • Easy to retrofit. • Highly economical.
